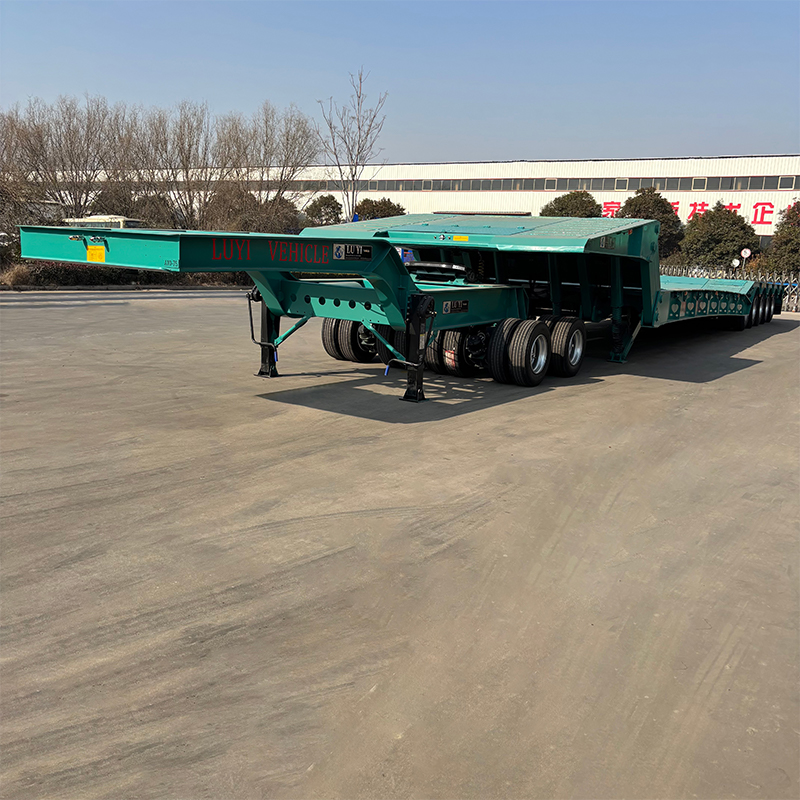

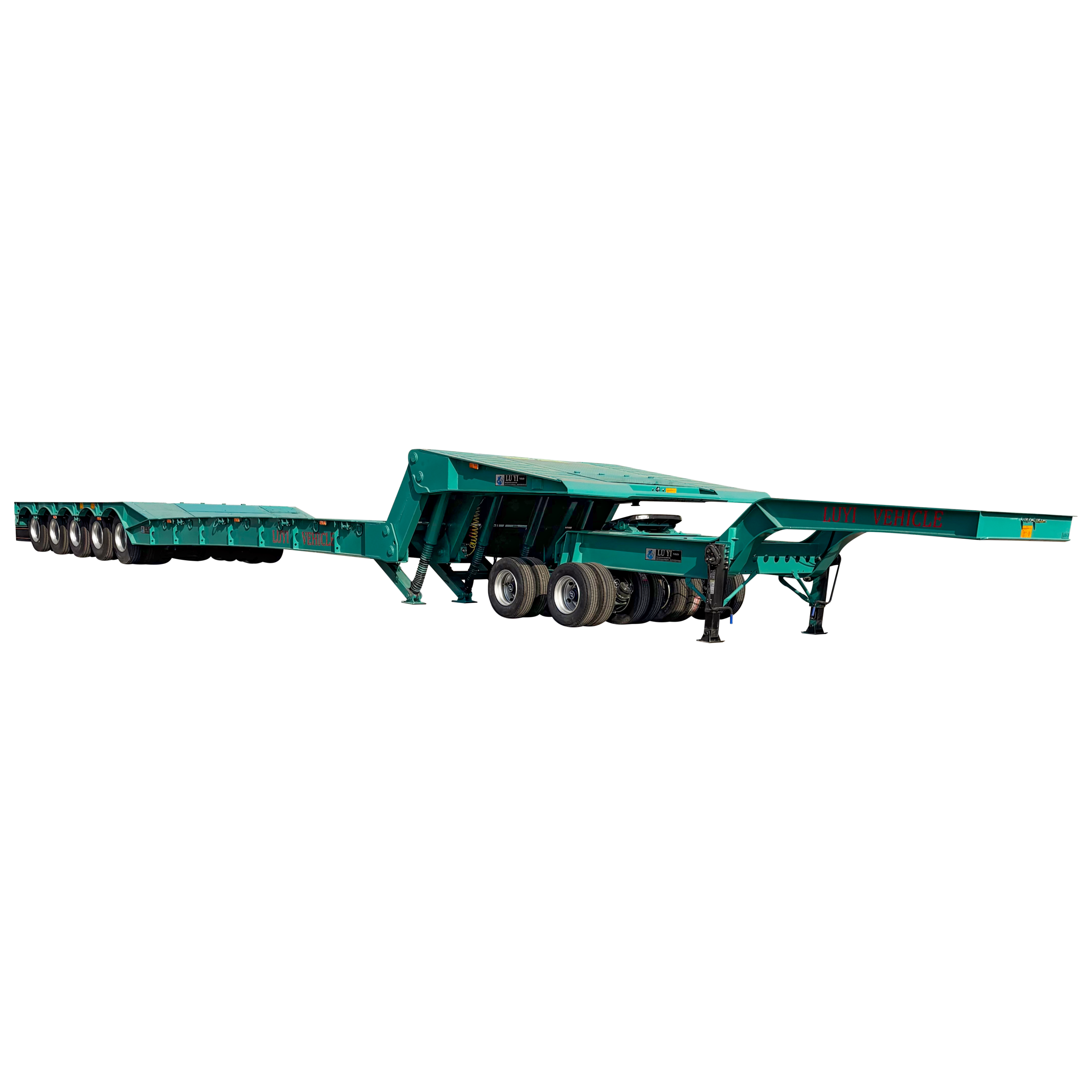

Folding Gooseneck Lowbed Trailer
Meet the ultimate heavy-haul solution: a 150-ton capacity lowbed system designed to carry two massive machines at once. Its 19.8-meter deck and auxiliary dolly distribute weight perfectly, protecting your tractor. The independent 24HP hydraulic system, controlled remotely, folds the gooseneck into a rugged loading ramp. And it’s proven—this vehicle has passed rigorous load testing with excellent results. For the world’s biggest projects, this is the trusted choice.

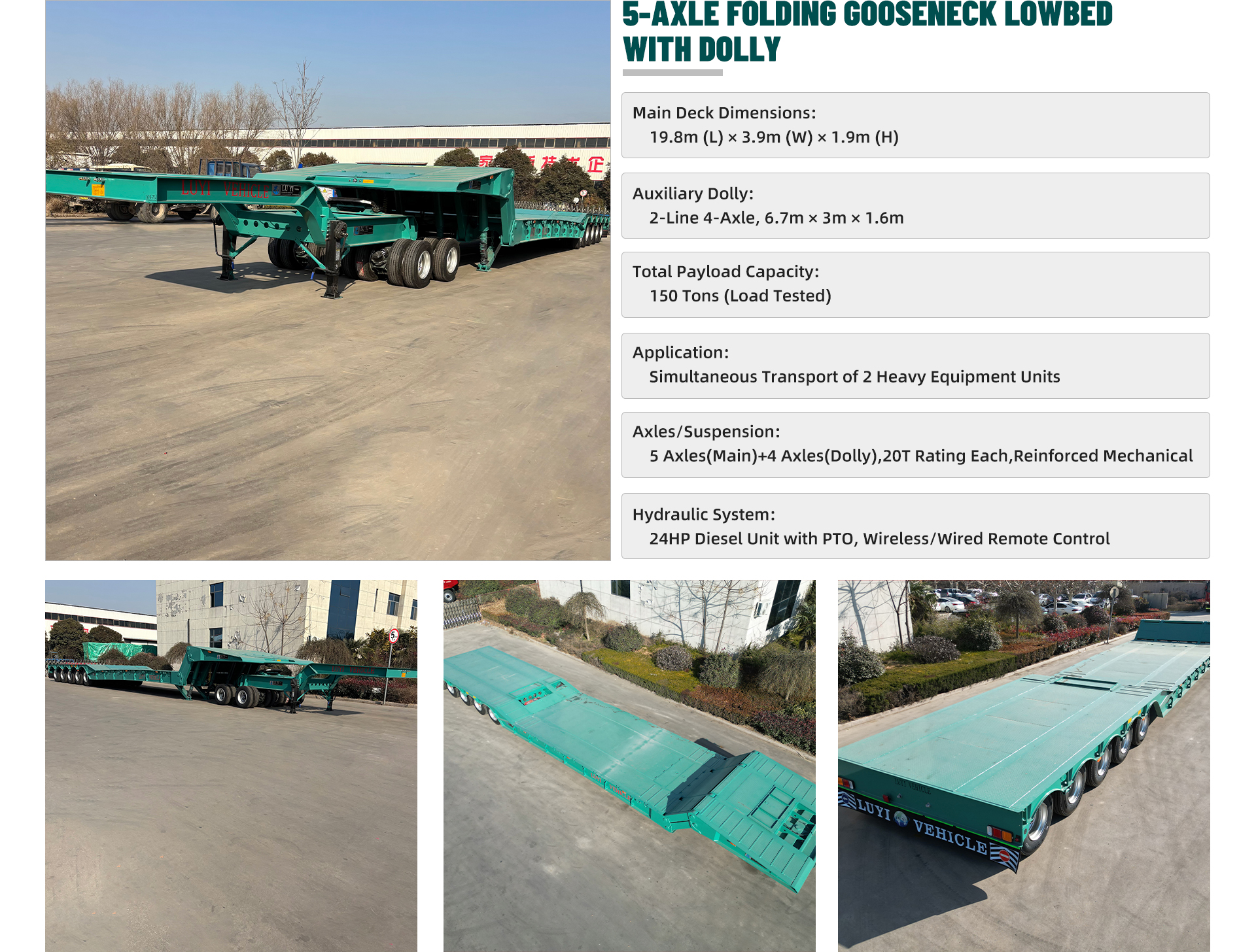

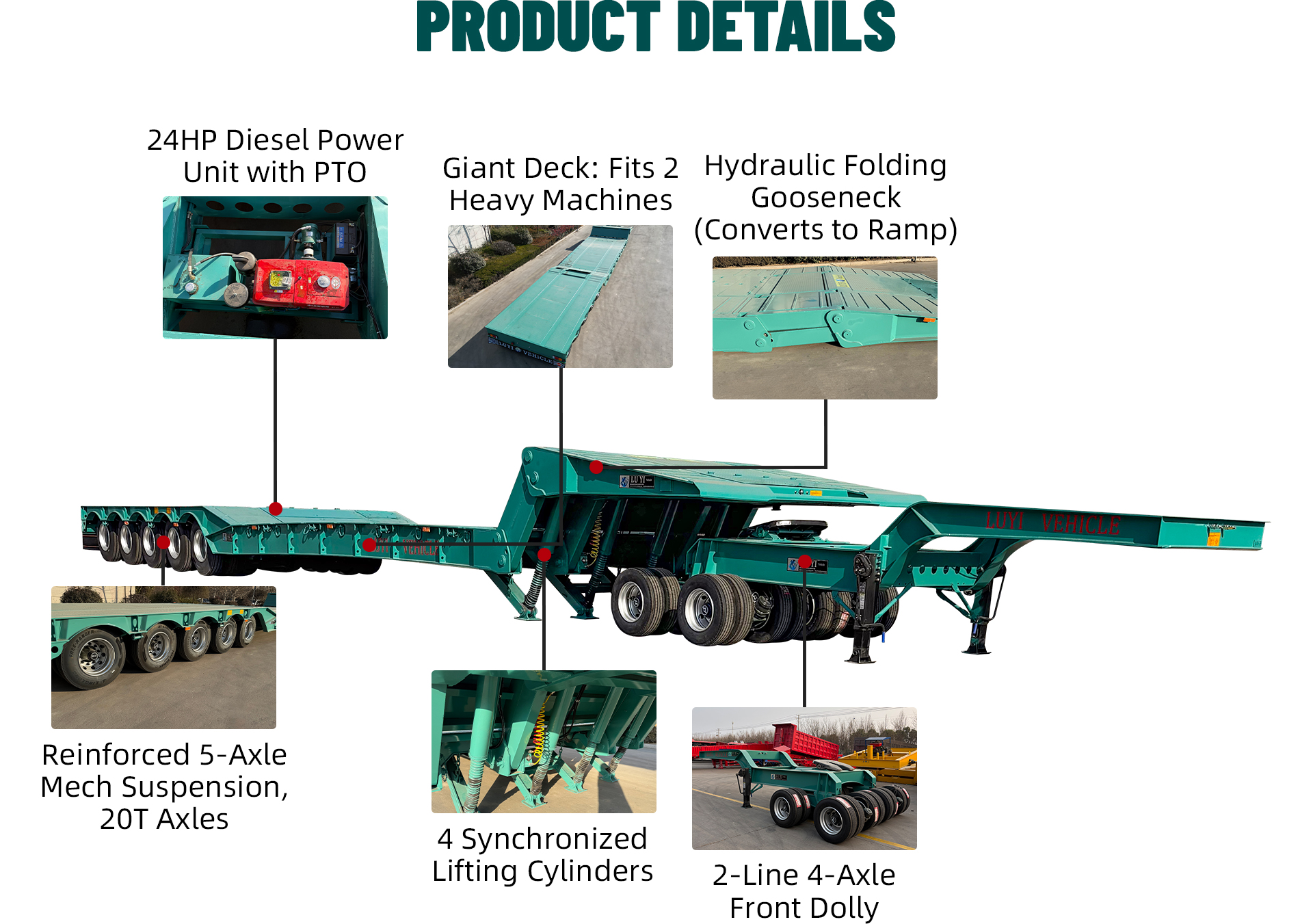

| System Configuration | 5-Axle Main Lowbed + 4-Axle Front Auxiliary Dolly |
|---|---|
| Main Deck Dimensions | 19.8m (L) x 3.9m (W) x 1.9m (H) |
| Auxiliary Dolly Size | 2-Line 4-Axle, 6.7m (L) x 3m (W) x 1.6m (H) |
| Total Payload Capacity | 150 Tons (Load-Tested & Proven) |
| Application | Simultaneous Transport of Two Heavy Machinery Units |
| Axles (Main + Dolly) | 5 Axles + 4 Axles = 9 Axles Total, 20-Ton Rating Each |
| Suspension | Reinforced Heavy-Duty Mechanical Suspension (All Axles) |

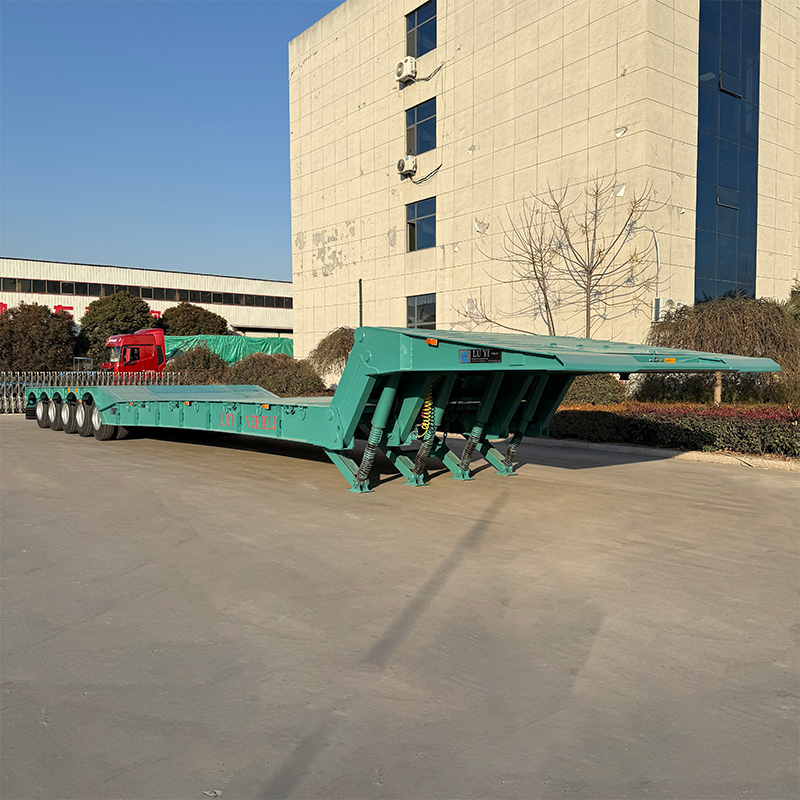

| Gooseneck Design | Hydraulic Folding Type (Converts to Integrated Loading Ramp) |
| Hydraulic Power Unit | 24HP Diesel Engine with PTO (Independent Operation) |
| Control System | Dual-Mode: Wired Handles & Wireless Remote |
| Lifting System | 4 Heavy-Duty Hydraulic Cylinders with Precision Synchronization Valve |

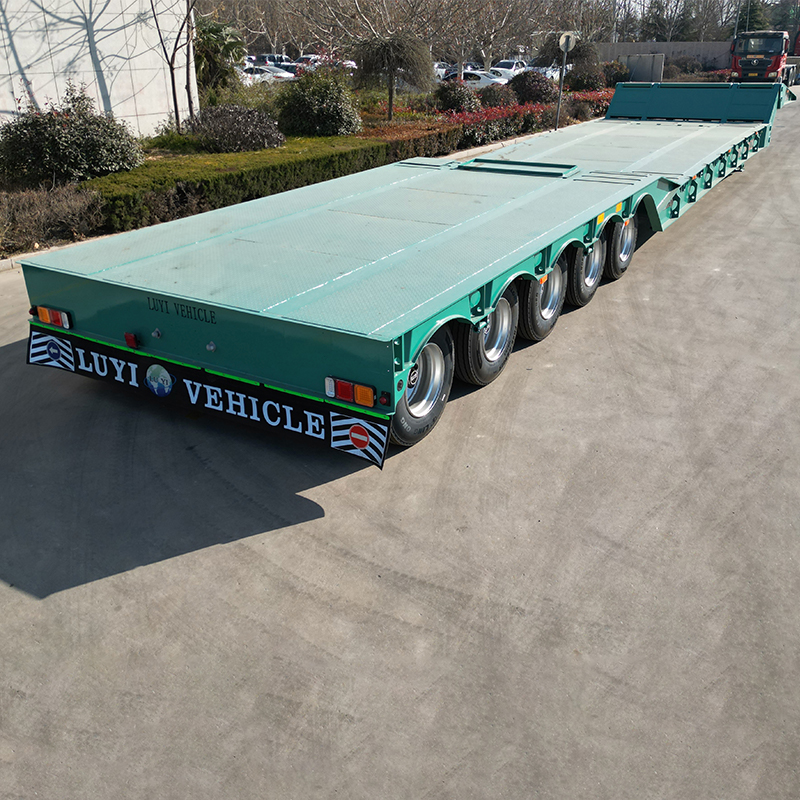

| Deck Material | High-Strength Steel Frame + Abrasion-Resistant Wear Steel Deck |
| Load Distribution | Innovative Dolly Design Reduces Stress on Tractor's Fifth Wheel |
| Primary Application | Mining, Energy Sector, Heavy Infrastructure, Mega-Project Logistics |

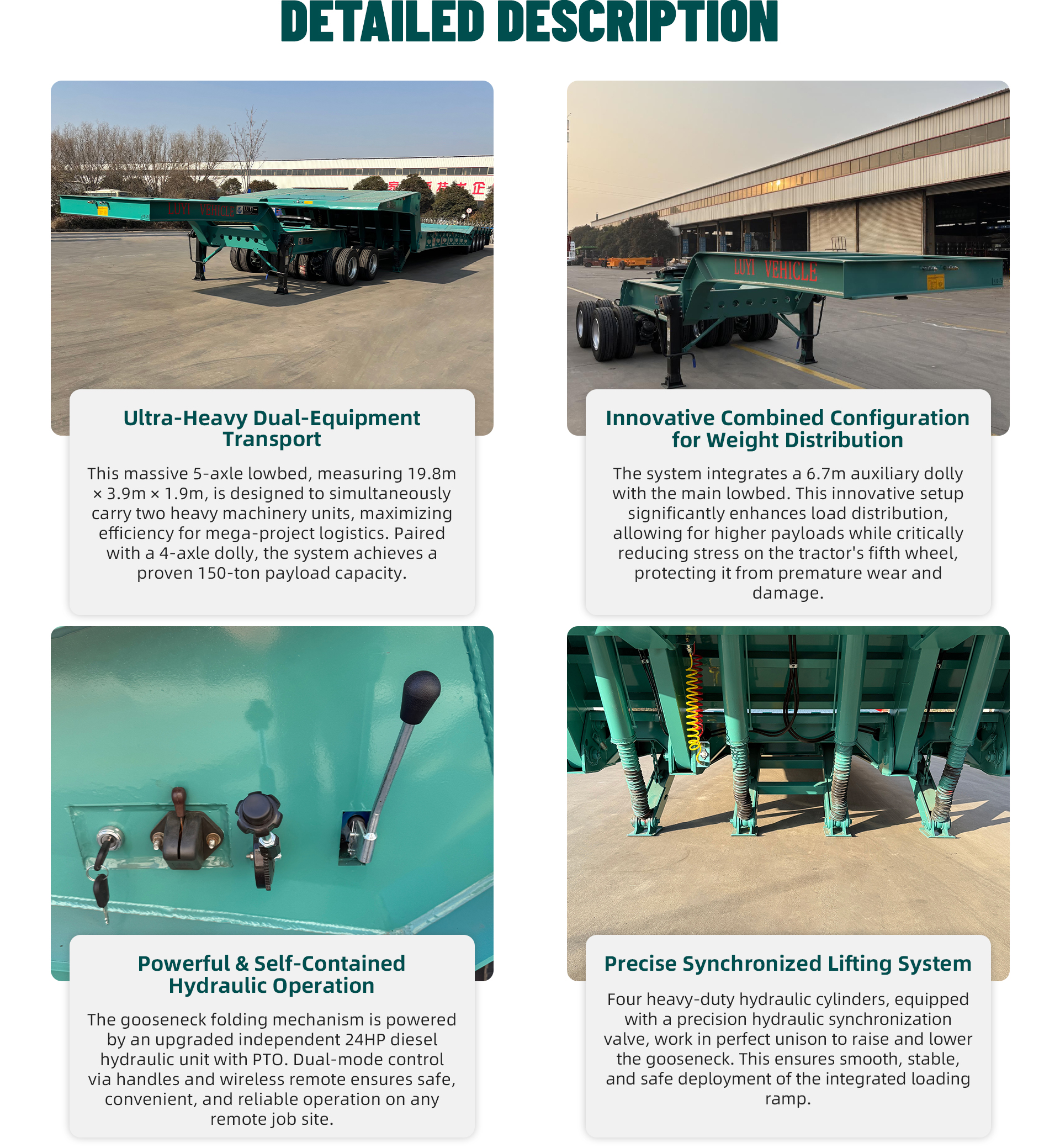

Mega-Scale Dual-Equipment Transport Solution:

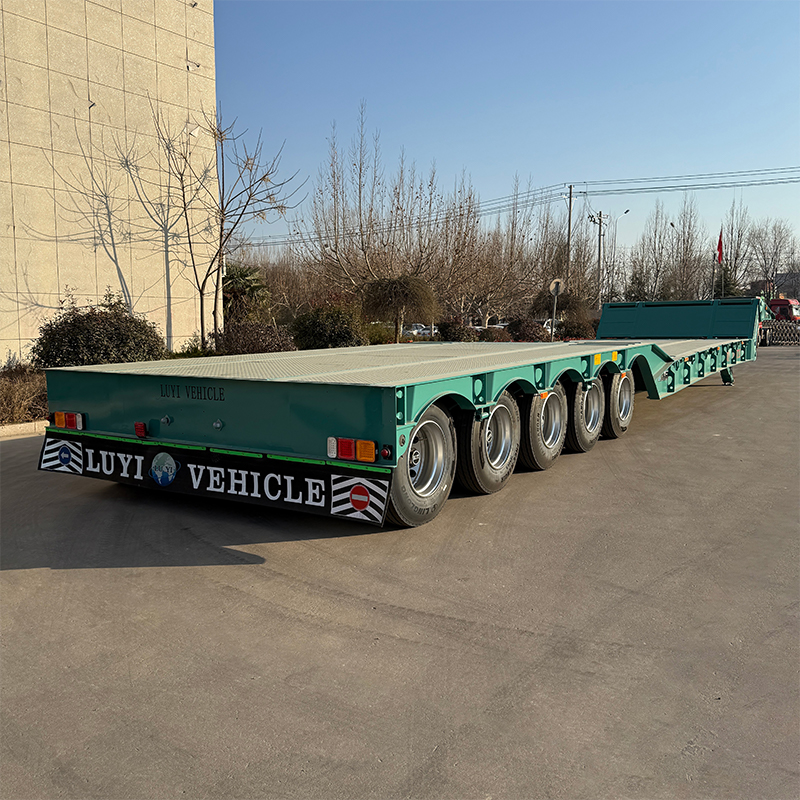

This innovative 5-axle lowbed system, paired with a 4-axle front dolly, creates a massive 19.8-meter deck capable of simultaneously carrying two heavy machinery units. Designed for mega-project logistics, it maximizes efficiency by reducing the number of trips required to move fleets of equipment to remote sites.
Proven 150-Ton Payload with Optimized Weight Distribution:

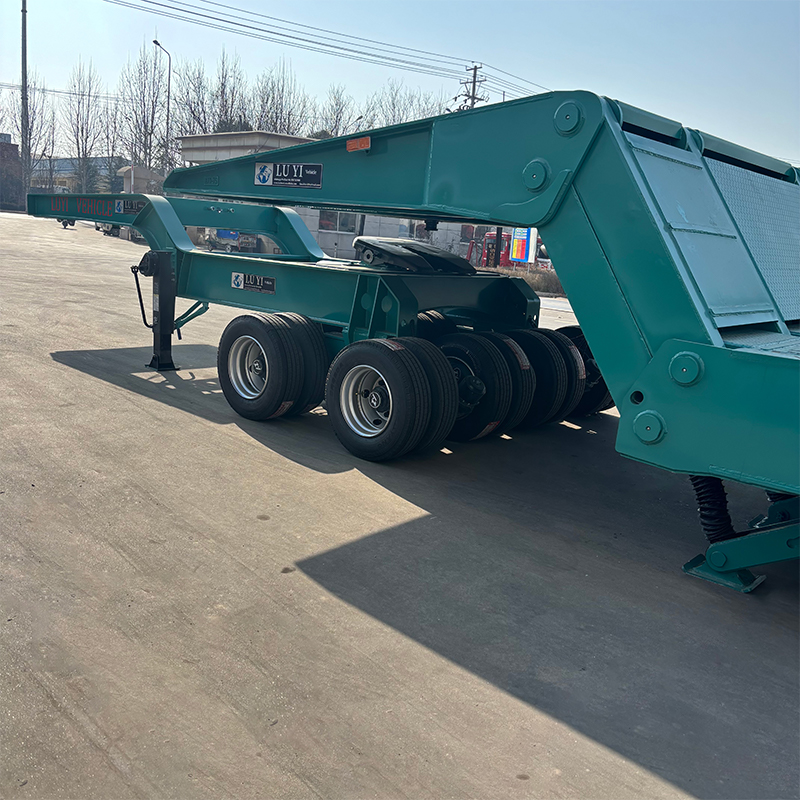

The unique combination of the main trailer and 6.7-meter auxiliary dolly has been rigorously load-tested, confirming a 150-ton capacity. This configuration significantly enhances load distribution across all 9 axles (with 20-ton rating each) while critically reducing stress on the tractor’s fifth wheel, preventing premature wear and protecting your prime mover.
Powerful Self-Contained Hydraulic System:
Operational independence is guaranteed by an upgraded 24HP diesel power unit with PTO. The system offers dual-mode control via both wired handles and a wireless remote, providing safe, flexible, and reliable operation for deploying the hydraulic folding gooseneck—which transforms into a rugged loading ramp—anywhere, without external power.
Precision-Engineered Synchronized Lifting:
The gooseneck folding action is powered by four heavy-duty hydraulic cylinders working in perfect unison, thanks to an integrated precision hydraulic synchronization valve. This ensures a smooth, stable, and controlled deployment of the loading ramp, a critical safety feature when loading heavy tracked vehicles.
Industrial-Grade Durability for Extreme Service:
Built to withstand the world’s toughest environments, the main frame is constructed from high-strength steel, while the loading deck utilizes specialized abrasion-resistant wear steel to resist impact and gouging from tracks and heavy tires. The reinforced mechanical suspensions on both the main trailer and dolly are built for a lifetime of heavy-haul punishment.
Related Products
FAQ
What is your typical production lead time?
For standard models, the lead time is generally 15-30 days after order confirmation. For customized trailers, it takes 30-45 days depending on complexity. We provide a detailed schedule upon order confirmation.
What warranty do you offer on your trailers?
We provide a 6-year structural warranty on the main frame and a 1-2 year warranty on other components, supported by clear warranty terms. Our long-term warranty reflects our confidence in product quality.
How do you handle shipping and delivery?
We handle full logistics, offering FOB, CIF, or CFR terms. We work with reliable freight partners for sea, land, or multimodal transport to ensure timely and cost-effective delivery to your nearest port or specified location.
Are spare parts readily available?
Yes, we maintain a complete inventory of common spare parts (suspensions, brakes, lights, etc.). Most parts are interchangeable with standard brands. We ensure fast spare parts supply to minimize your downtime.
Do your trailers meet international standards and certifications?
Yes, our production complies with ISO standards, and our trailers meet key market certifications such as CE for Europe and DOT for certain regions. We also provide necessary export documentation and certification support.
Can you customize trailers according to our specific requirements?
Absolutely. We specialize in OEM/ODM services. You can customize dimensions, materials, axles, braking systems, logos, paint colors, and special functions. Our engineering team will work with you from design to production.
What international payment methods do you accept?
We accept T/T, L/C, and Western Union. For long-term partners, flexible payment terms can be discussed. We ensure secure and transparent transaction processes.
Do you provide after-sales support and maintenance?
Yes, we offer 24/7 after-sales support via email, phone, and WhatsApp. We provide operation manuals, remote troubleshooting, and can dispatch technicians if needed. We also supply genuine spare parts globally.
Can we visit your factory before ordering?
Certainly. We welcome clients to visit our factory in Shandong, China. You can inspect production lines, quality control processes, and discuss requirements face-to-face. Virtual factory tours are also available.
What is your minimum order quantity (MOQ)?
For standard models, MOQ is 1 unit. For customized orders, MOQ may vary. We offer competitive pricing for both small and large fleet orders. Contact us for a tailored quotation.
